Test Instrumentation Solutions
Temperature and pressure rakes for turbine engine testing—manufactured to tight build tolerances, supported by in-house machining and dimensional inspection.
Intro
Pyrovia manufactures temperature, pressure, and combination rakes and probes for turbine engine testing—from development rigs to production and qualification environments. Our instrumentation is manufactured to tight tolerances for repeatable results in demanding test-cell conditions, supported by in-house machining, dimensional inspection, and precision fabrication.

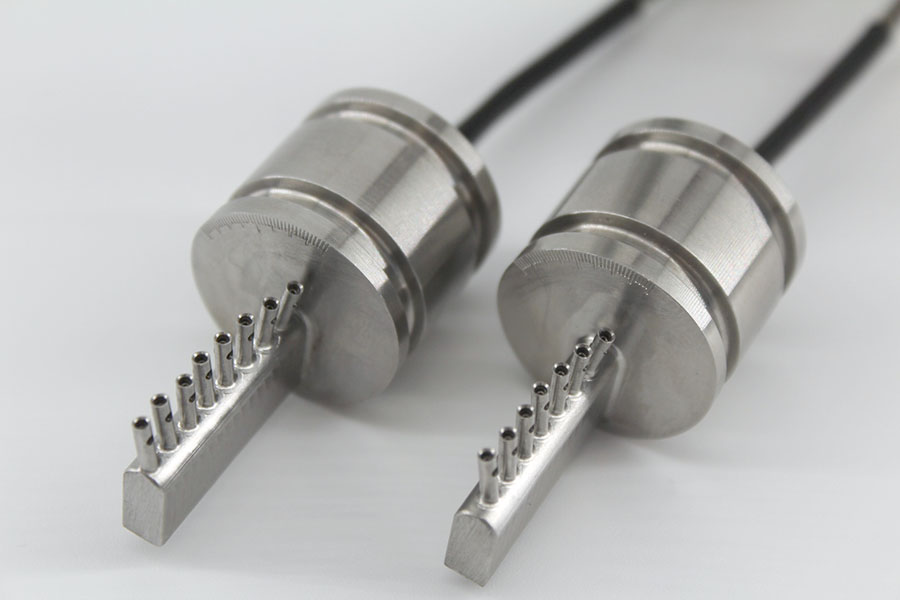

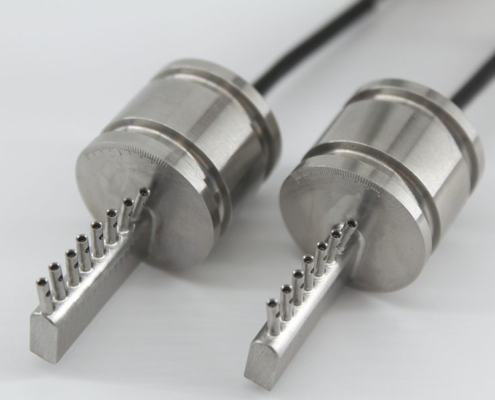

Rakes
Pyrovia manufactures rakes for turbine engine testing programs where multi-point measurements must be repeatable and mechanically robust in demanding flow environments.

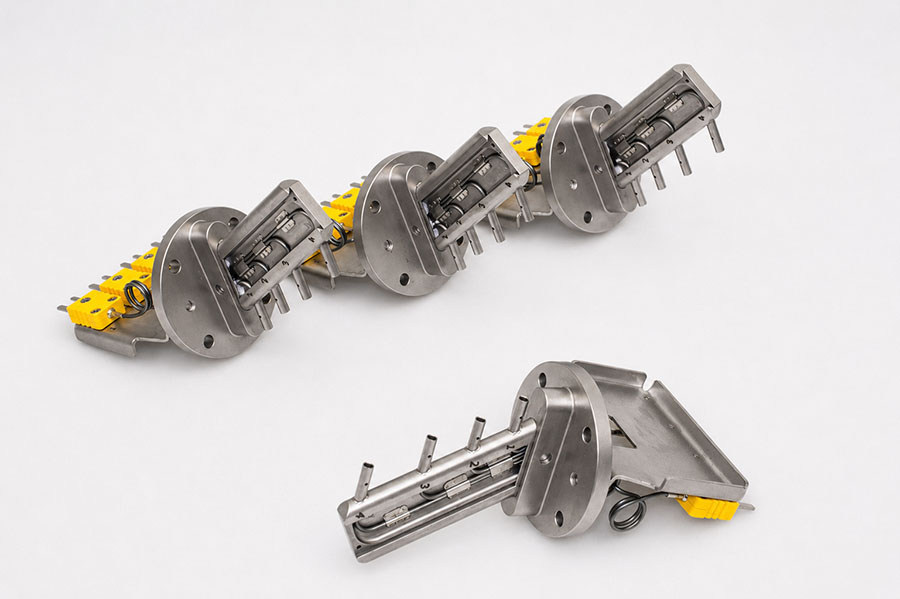

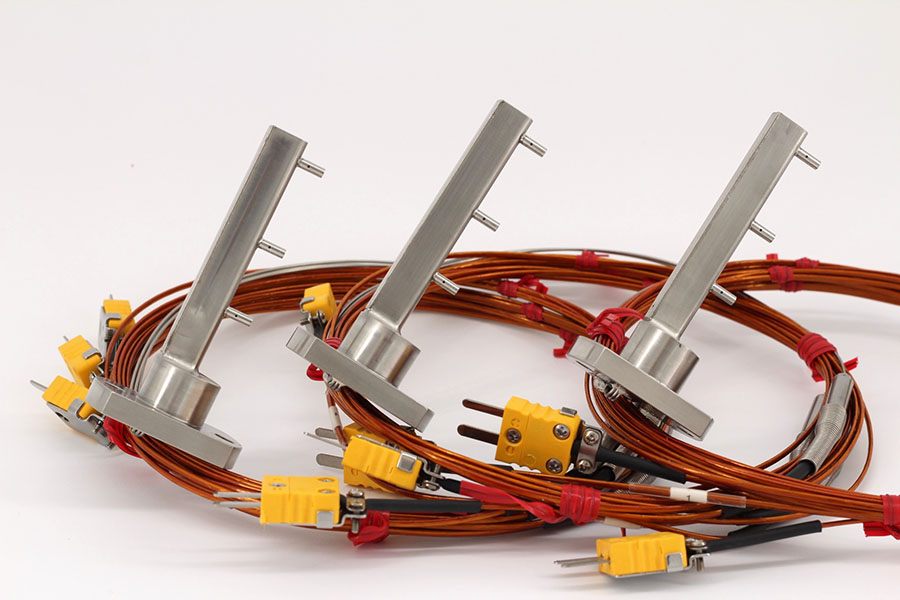

- Temperature rakes for multi-point thermal measurement
- Pressure rakes for multi-point pressure measurement

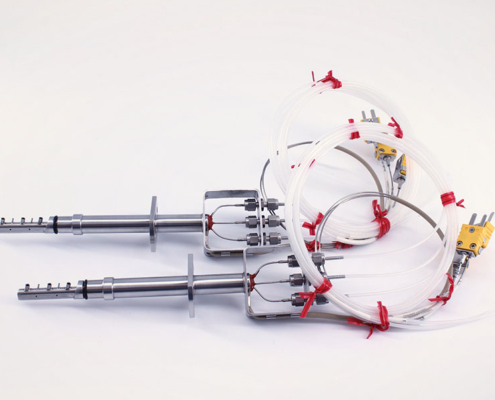

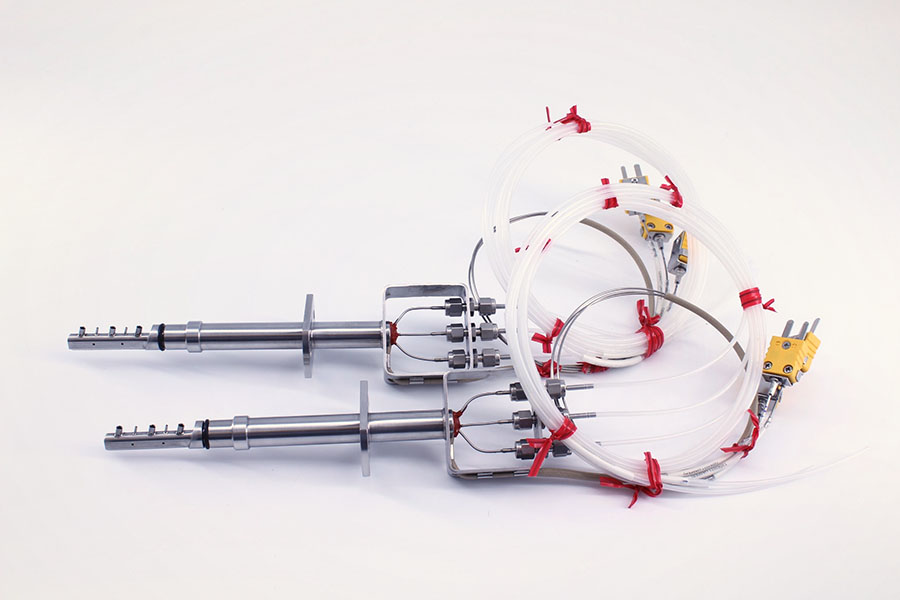

- Combination rakes integrating temperature and pressure sensing in a single assembly
Common measurement integrations include:
- Temperature sensing using thermocouples, RTDs, or thermistors
- Static and total pressure measurement points

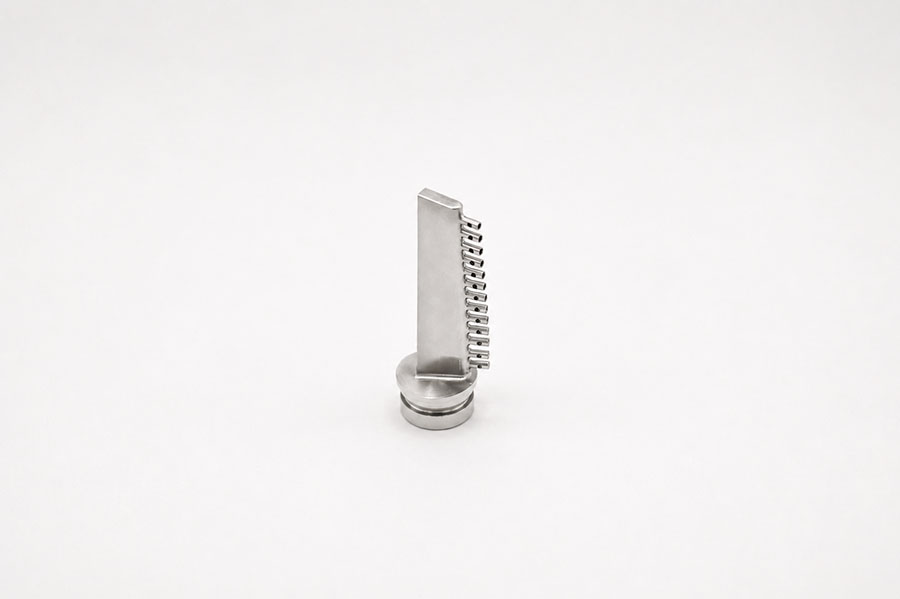

- Kiel and TAT (Total Air Temperature) configurations
- Multi-hole probe geometries for flow angle measurement
Common build features include:
- Tight build tolerances for consistent geometry and repeatable results
- In-house machining and dimensional inspection to support controlled fit and build quality
- Robust construction suited to demanding test-cell conditions
- Precision fabrication supported by in-house laser micro welding for high-precision assemblies

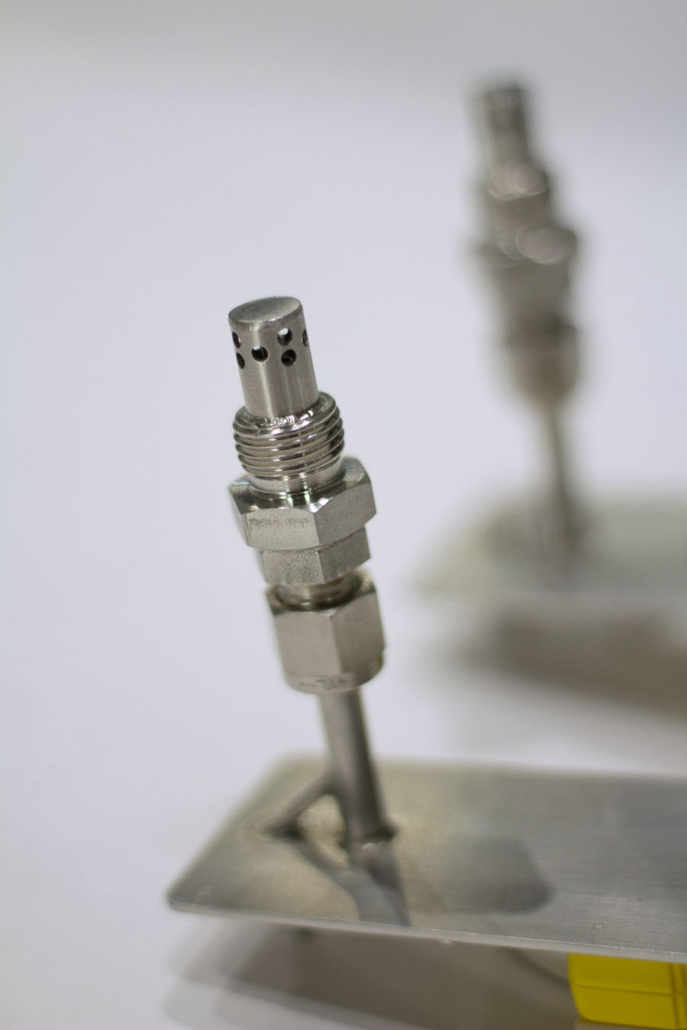

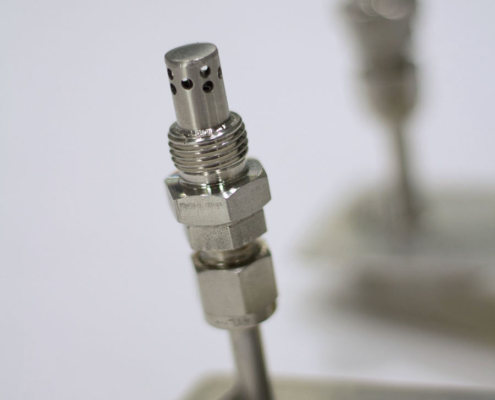

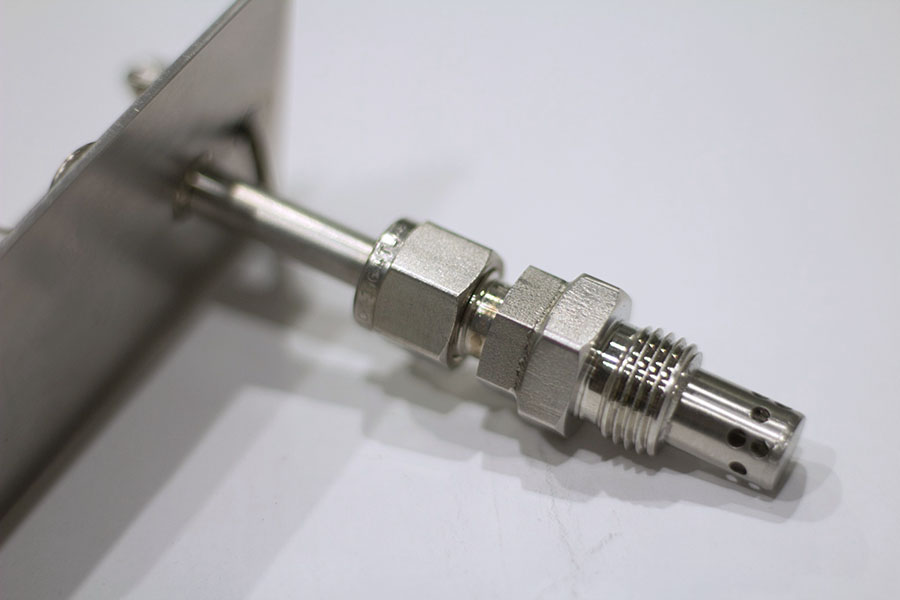

Probes
Pyrovia manufactures temperature and pressure probes used in turbine engine testing where durability, consistency, and tight build tolerances matter.
- Temperature probes using thermocouples, RTDs, or thermistors
- Pressure probes for static and total pressure measurement points
- Kiel and TAT configurations where required
- Multi-hole probes for flow angle measurement
- Configurable designs to suit installation constraints and program requirements
Instrumentation Services

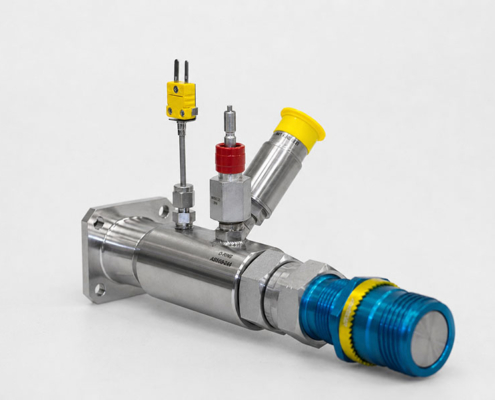

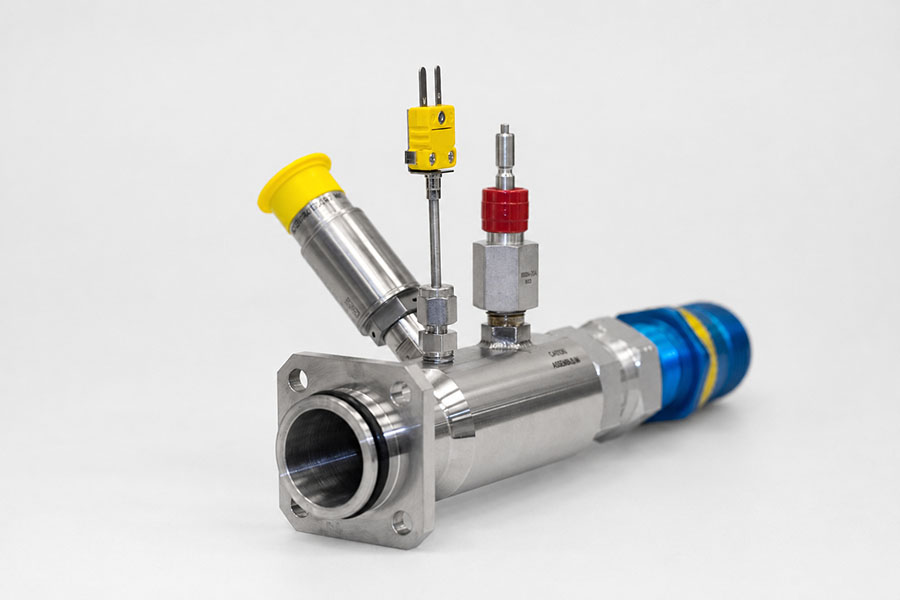

We instrument customer hardware and assemblies for turbine engine testing programs, supporting measurement integration where instrumentation must fit tight constraints and program requirements. Traceability and documentation can be provided per program needs.
Materials & Consumables
We supply common instrumentation materials and consumables used in turbine engine testing, including tubing, MI cable, thermocouple wire, shim stock, and related items required to support installation and build work.
Why Pyrovia
Pyrovia supports turbine engine testing programs with instrumentation manufactured to tight build tolerances and built for demanding test-cell conditions. With in-house machining, dimensional inspection, and controlled fabrication processes, we maintain fit, repeatability, and build quality from fabrication through final assembly. Temperature calibration to ISO/IEC 17025 standards is available.
